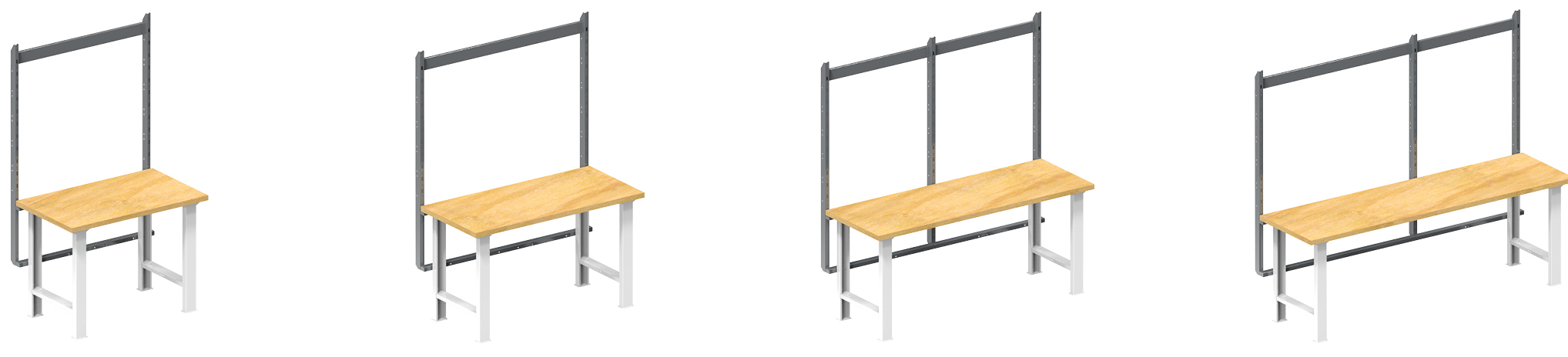

The superstructure is suitable for all types of workbenches:
- KOMBI workbenches
- MODULAR workbenches
- MOBILE workbenches
Riser structure and arm

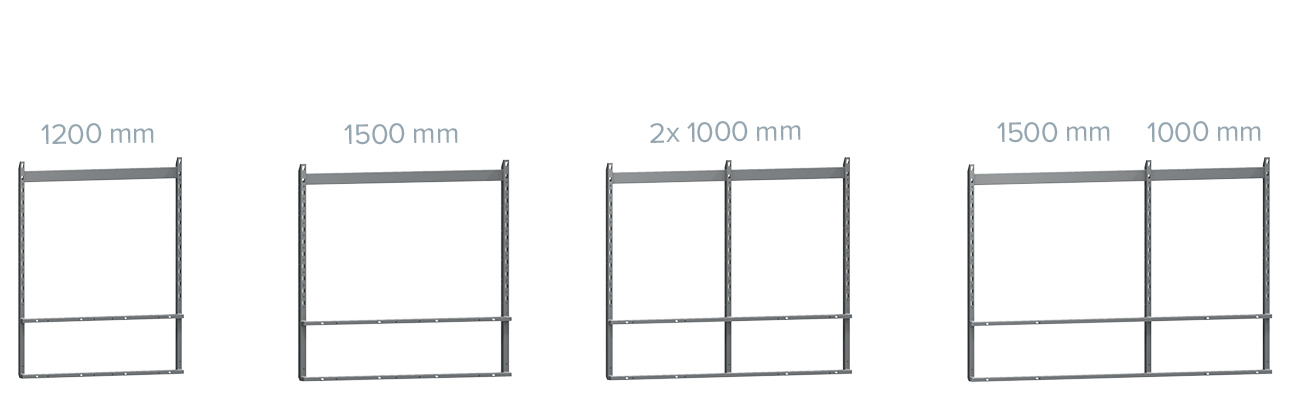

Here, the basic building element is formed by a structure, which we offer in four widths - 1200, 1500, 2000 and 2500 mm.
How to properly attach the structure to the workbench (the structure is always supplied as one piece):
You simply attach an arm (in the width of the riser) to the structure, which you can use to attach a lighting fixture, a pneumatic quick coupling or a trolley. The arm is sliding by 130 mm and its profiles are made of anodized aluminium.

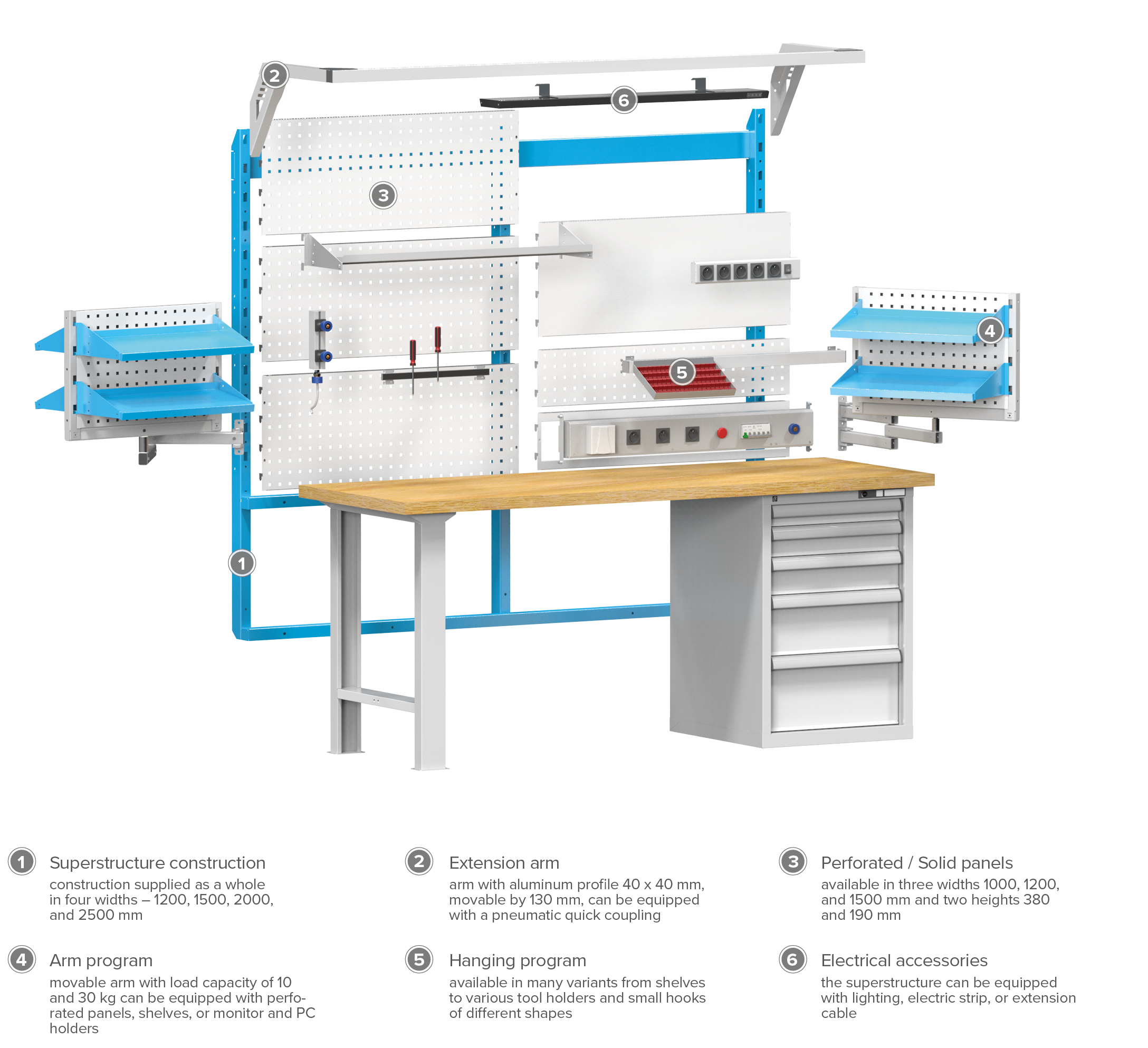

You can freely place another assortment on workbench riser built in this way:
- Perforated and solid panels (widths 1000, 1200 and 1500 mm, heights 180 and 190 mm)
- Shelves (widths 1000, 1200 and 1500 mm, depths 206 and 370 mm)
- Frame for electric strip and electric strip of your choice
- Extension lead
- Lighting
- Hanging accessories (hooks, holders, plastic boxes, magnetic strips, etc.)
- Ergonomic hanging accessories
Ergonomic hanging accessories
The hanging system consists of movable arms to which various accessories can be attached. The arms are available in two versions – with load capacities of 10 kg and 30 kg. You simply mount the selected type of equipment onto the chosen arm.
The arm with loading capacity of 10 kg can be attached to the column at any height.
The arm with loading capacity of 30 kg can be attached to the column only at one height.
